Accessing rooftop mechanical equipment? Think about passive fall protection first

Gary RaeMarket Segment Manager - Confined SpaceSeptember 20, 2022

Regular maintenance of rooftop mechanical equipment such as HVAC equipment is a common fall hazard on many buildings. Maintenance workers or Contractors face numerous hazards when accessing equipment for service.

Examples of hazards on rooftops include (but are not limited to):

  • access points (fixed ladders or hatch openings)
  • skylight openings, and
  • mechanical equipment located near the roof edge.

When implementing a rooftop safety plan, there are many options to consider.

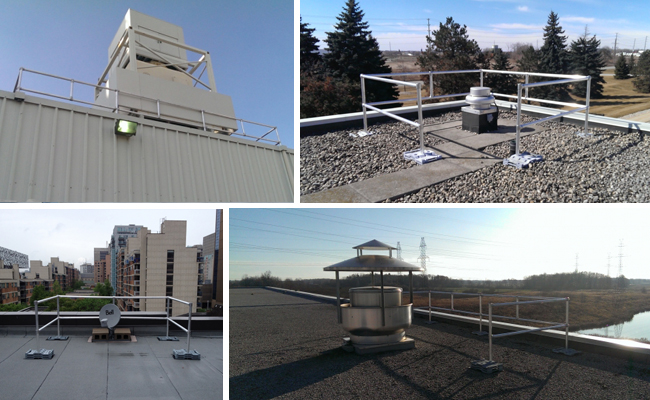

    a collage of guardrails set up on roof tops

    Passive fall protection is the answer.

    A passive fall protection system is the preferred method of fall protection.

    It's stationary so it won't move, adapt or change when in or out of use.

    Passive fall protection doesn't require the use of personal protective equipment (PPE) or active participation from the worker.

    Typical passive solutions include guardrails or netting systems.

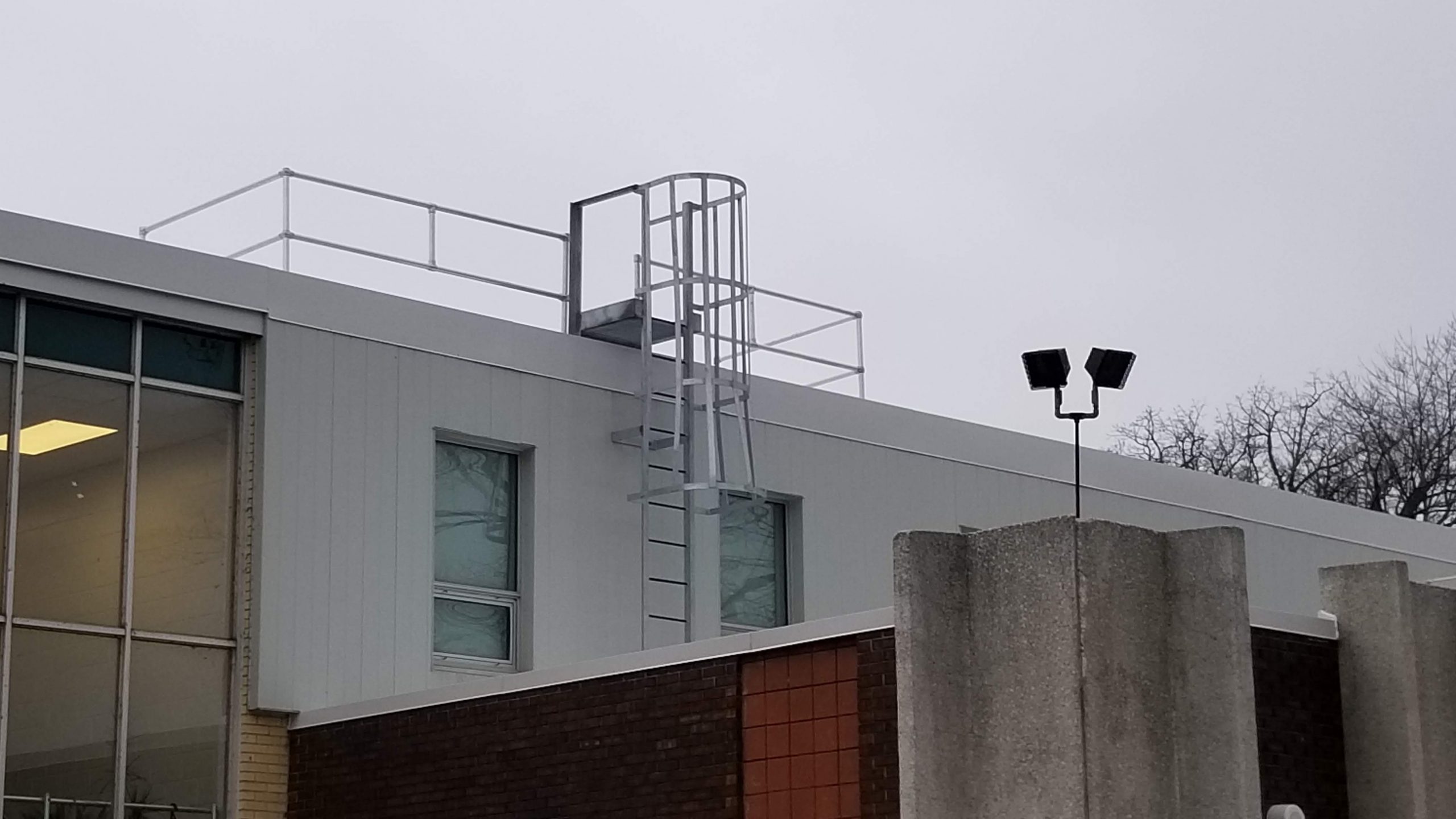

    roofguard roof top ladder access point with fall protection

    Why are guardrails the best option?

    Every inspector, trainer and consultant will point you to the Hierarchy of Fall Protection when talking about a fall protection program.

    The hierarchy looks like this:

    1. Hazard Elimination: This is the preferred option. Eliminate the exposure to a fall hazard.
    2. Passive Fall Protection: Physical barriers, like guardrails around unprotected edges and openings or netting. No specialized equipment or training needed.
    3. Fall Restraint Systems: Anchors and PPE to restrict the worker's range of movement so they cannot fall. Specialized equipment and training required.
    4. Fall Arrest Systems: Anchors and PPE to arrest a fall within acceptable force and clearance margins. Specialized equipment, training and rescue planning required.

    the hierarchy of fall protection poster

    What to look for in a guardrail system:

    Non-penetrating guardrail systems are the most practical and easiest to install. Most businesses prefer them for three reasons:

    1. No welding, drilling or bolting into the roof structure.
    2. Eliminates the risk of water leaks or the need to reseal.
    3. Meets building codes and standards.

    Multiple workers can be protected without specialized equipment and training.

    Coverage for many of these applications is available in pre-engineered, packaged kits.

    The systems are modular and can easily be configured to match any application.

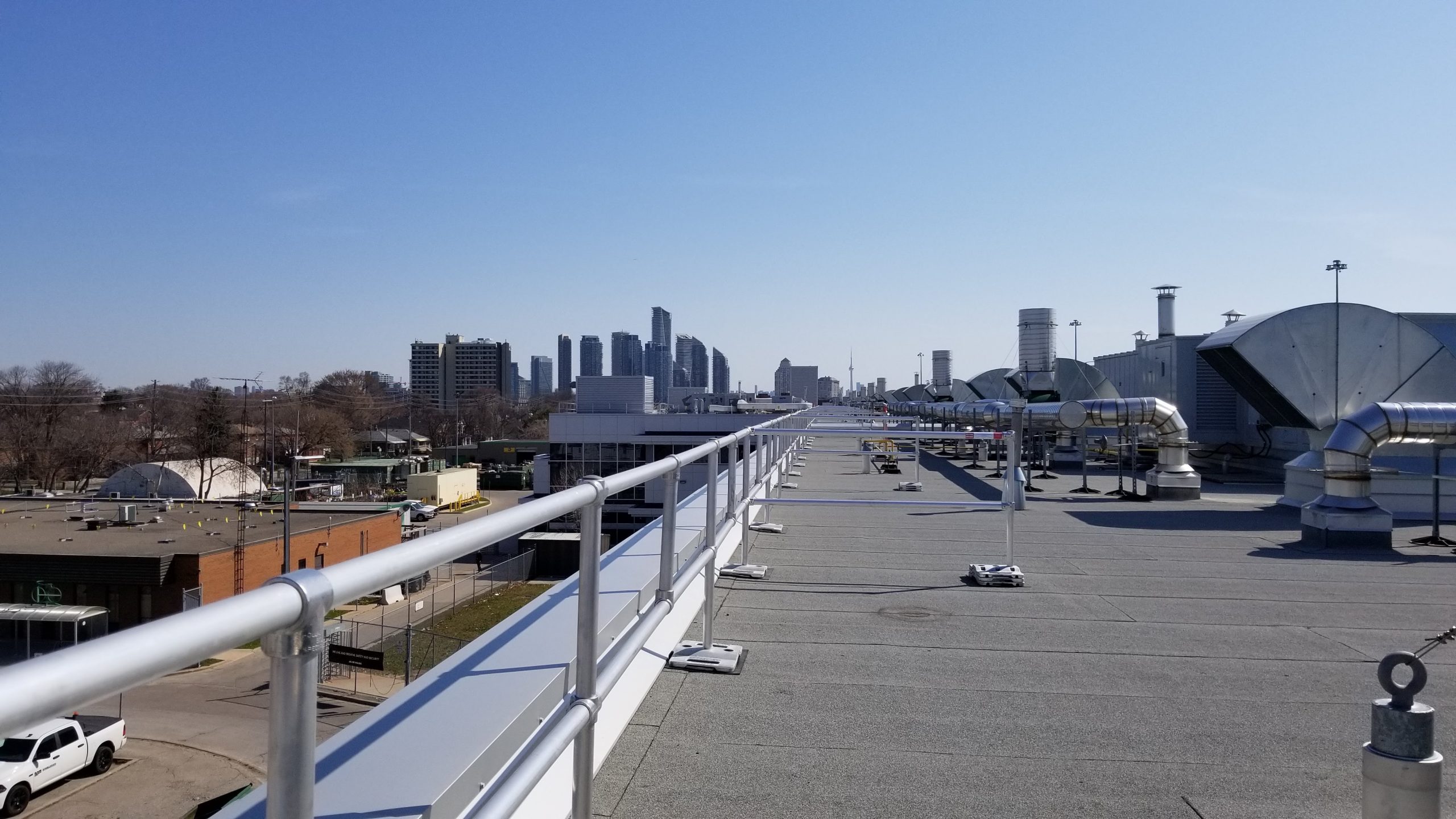

    Roofguard classic

    Why we recommend the RoofGuard line of products

    We recommend RoofGuard because it’s easy to use, reliable and effective.

    It starts with the base plates.

    These plates are portable, stackable and easy to carry.

    Each one weighs 40 lbs. and is designed to nest. This gives them enough ballast to comply with fall protection legislation.

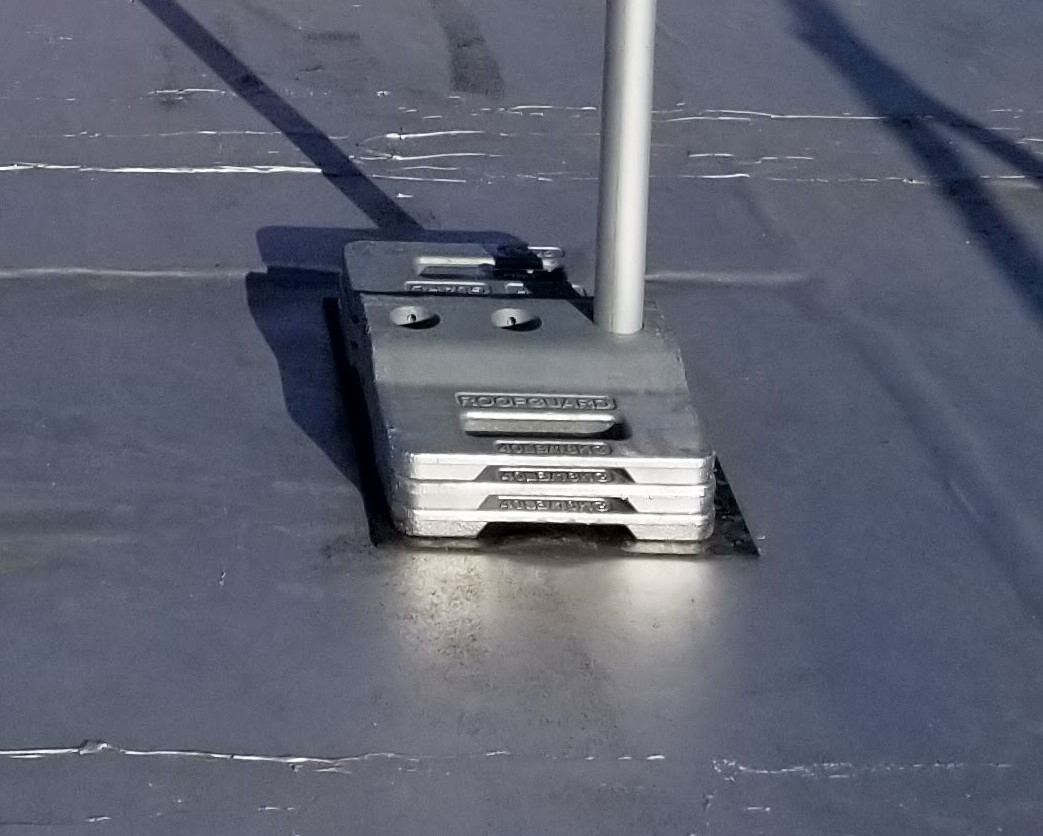

    roofguard roof top base plates

    RoofGuard options and packages:

    We carry the whole line of RoofGuard products, you can learn more about each product by visiting our roof guardrails page.

    RoofGuard Classic:

    • Comes in 6-foot or 9-foot spans
    • Available with 9, 18 or 27 feet of leading edge protection
    • Can be set up straight, at 90 degrees or anything in between
    • Custom colours available to match existing structure
    • Can be custom fit around obstructions
    • Fittings can accommodate sloped roof sections up to 5% grade

    Guardrail Accessories:

    You can also add the follow accessories to your roof guardrail system:

    • hatch guards allow contractors to safely enter and exit a rooftop
    • rooftop walkway system
    • roof access ladders
    • crossover walkways to eliminate trip hazards from pipes
    • hatch bars to safely enter and exit a rooftop

    Good ventilation in place is going to be key in public spaces like schools, universities and shopping malls from now on.

    Good passive fall protection system in place is key to ensuring maintenance personnel are safe to do their jobs.

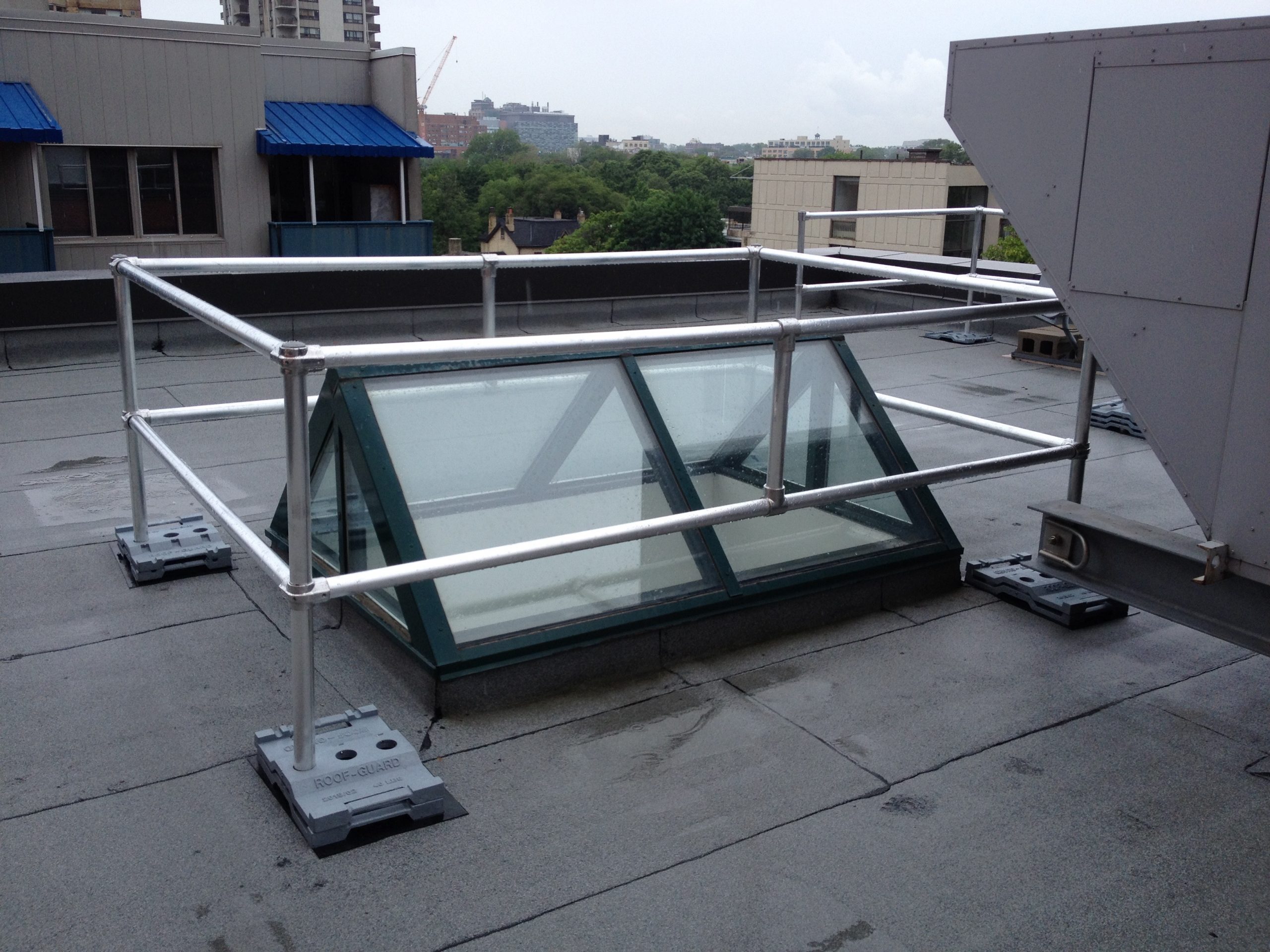

    rooftop guardrail around skylight to protect from falls

    Talk to an expert

    Fall protection guardrails can be installed on most rooftops, regardless of shape or size.

    Our team of fall protection specialists is here to help answer any questions you have.

    We can also provide quotes for guardrail kits or custom installations.
