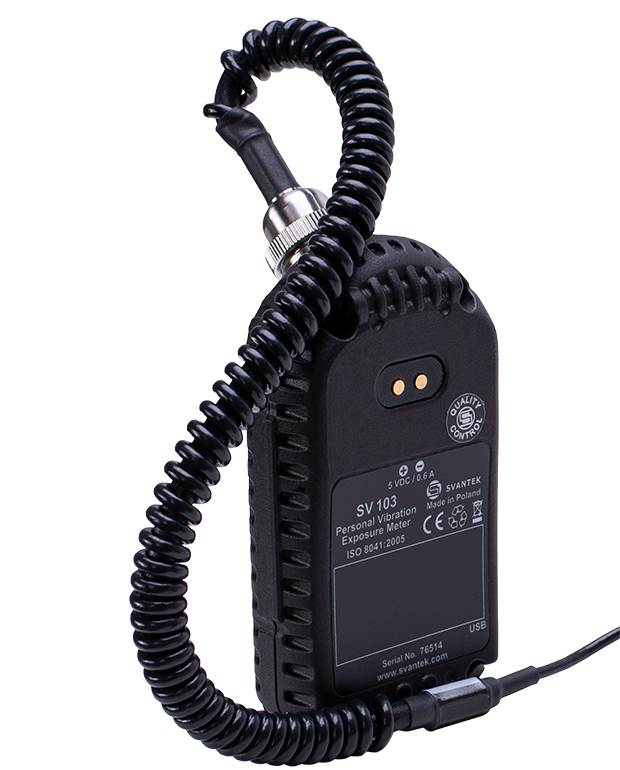

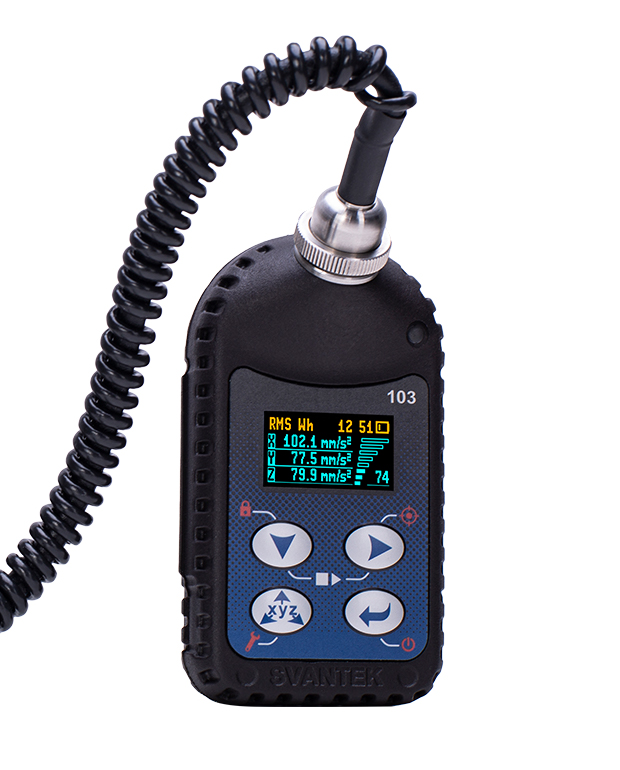

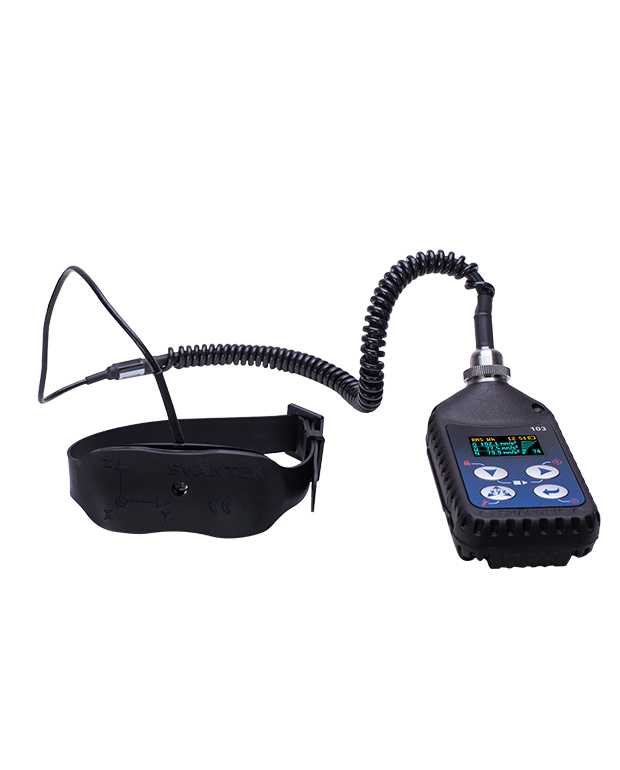

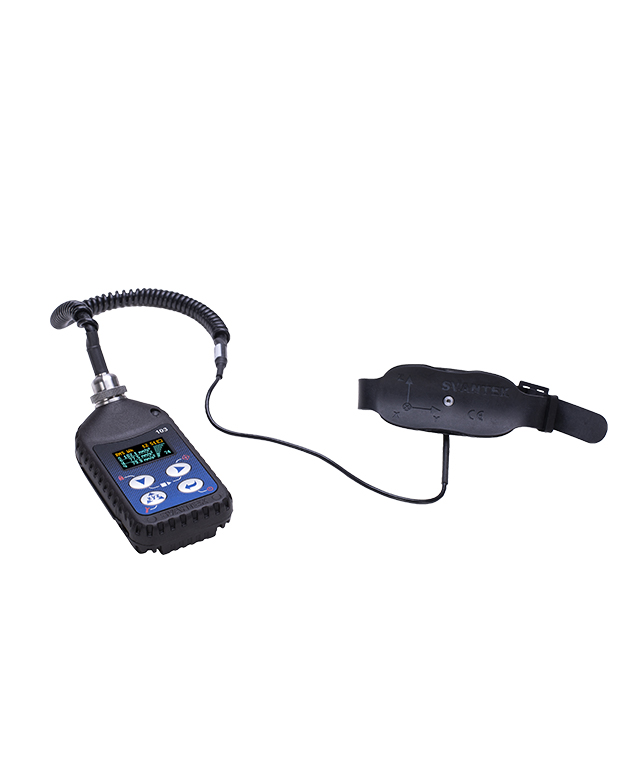

SV 103 is a wearable vibration meter that enables accurate measurement of hand-arm exposure throughout a full working day, in compliance with ISO 8041-2:2021 and ISO 5349. The built-in force detection sensor automatically detects hand contact with the vibrating surface, allowing the instrument to calculate actual daily exposure (A(8)) with high precision. This significantly reduces uncertainty by eliminating guesswork about tool usage time. Mounted directly on the user’s hand and small enough to fit under gloves, SV 103 ensures full-shift monitoring without interfering with normal activities. The device stores high-resolution time-history data, and optional 1/3 octave analysis provides advanced diagnostics of frequency content for source identification and compliance with Directive 2002/44/EC.
-
- Fully wearable Personal Vibration Exposure Meter (PVEM) that enables daily exposure monitoring without disrupting normal work activities.
- Compliant with ISO 8041-2:2021, ISO 5349, and Directive 2002/44/EC, ensuring accurate and standardised measurements in occupational settings.
- Equipped with the SV 107 accelerometer, which includes a contact force sensor to measure both grip and push force, essential for calculating true A(8) exposure time.
- MEMS-based triaxial accelerometer provides high shock resistance, low power consumption, and compact form factor, enabling full-shift measurements under gloves.
- Real-time logging of vibration values and contact force, with optional 1/3 octave analysis for frequency-specific source identification and artefact detection.
- Automatic operation with minimal user interaction, simplifying compliance with new regulations for human vibration assessment.
- Battery life over 24 hours and compact design make the SV 103 ideal for continuous use across multiple shifts or high-mobility tasks.
- Brand: Svantek
